Tube pedal project |
|
| Page 1 - Page 2 - Page 3 - Page 4 | |
 |
 |
| This box is all aluminum construction and it looks to be 1/16" inch thick. It has a black tube guard that stands up on 1 1/4" hex standoffs. The black tube guard mounts to the standoffs with two #6 screws. There is also an internal hex standoff that supports the center section between the two tube holes. It comes with a package of chassis screws and rubber stick on feet. | |
 |
|

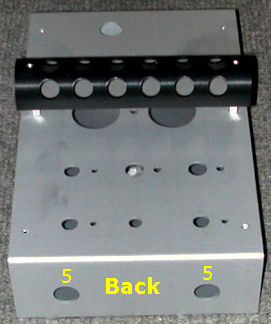

| Hole sizes 1 = 5/16", 2 = 1/4", 3 = 3/8", 4 = 1", 5 = 1/2" There is also a 15mm power receptacle hole on the left side that is not visible in the photo. This would be for a female wall wart plug receptacle. The small holes next to 1 and 3 is where the anti rotation tabs on Alpha pots go. |
|
| - | |
