Stereo Power amp project |
|
| This project is an all tube, stereo, power amp, rack unit. The stereo outputs let you do ping pong delays and other true stereo effects such as chorus. I happened to have
a few pieces of a rack unit laying around and so I pieced together what I had and used some poplar to make the wooden
parts. This design is two 18 Watt Marshall power amps in one chassis. |
|
| - | |
| - | |
| Click on the images below to see a larger image | |
 |
 |
| Top rear View | Top Front view |
| - | |
 |
 |
| Inside front view | Inside rear view |
| - | |
| Click on the images below to see a larger image | |
 |
|

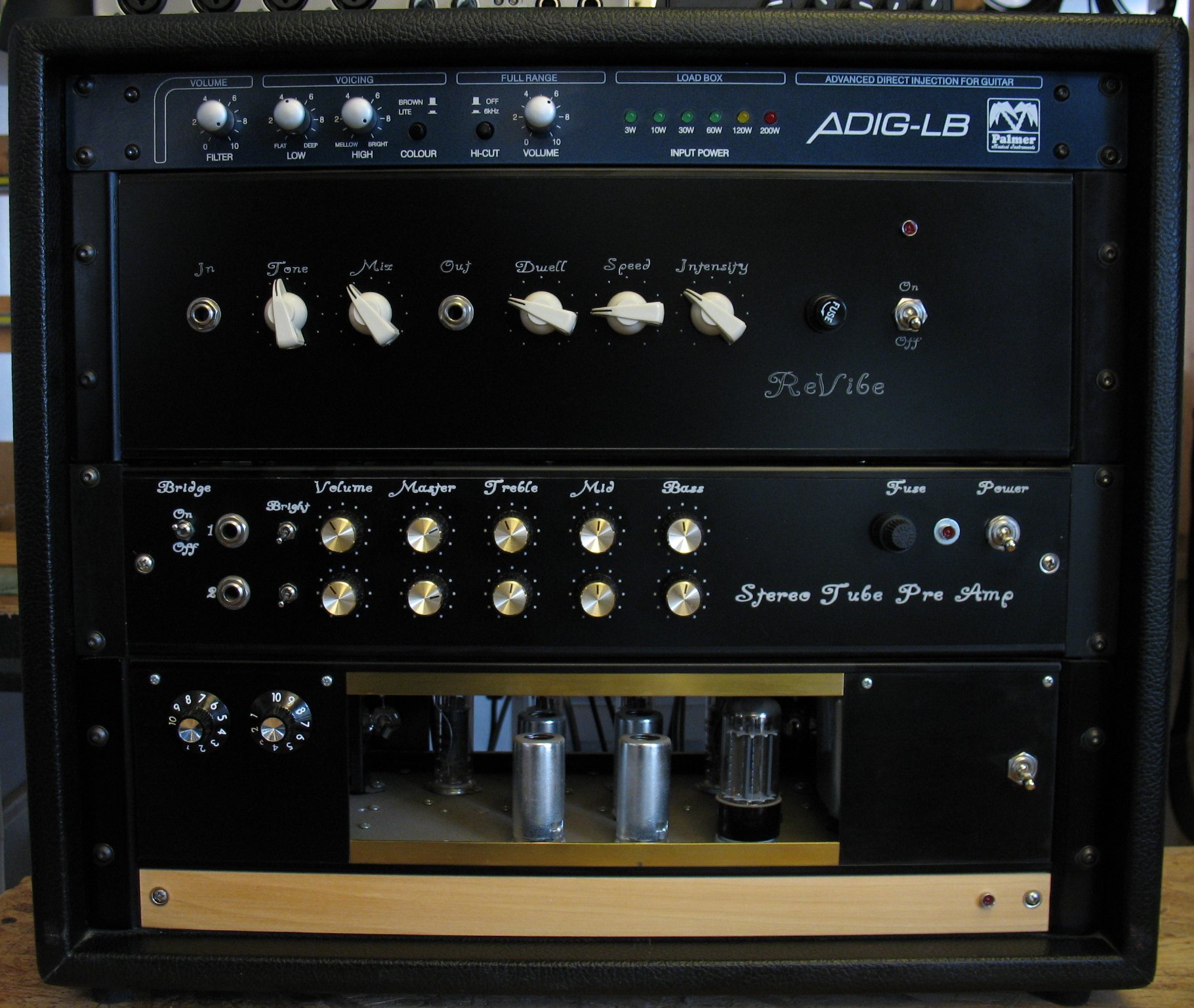

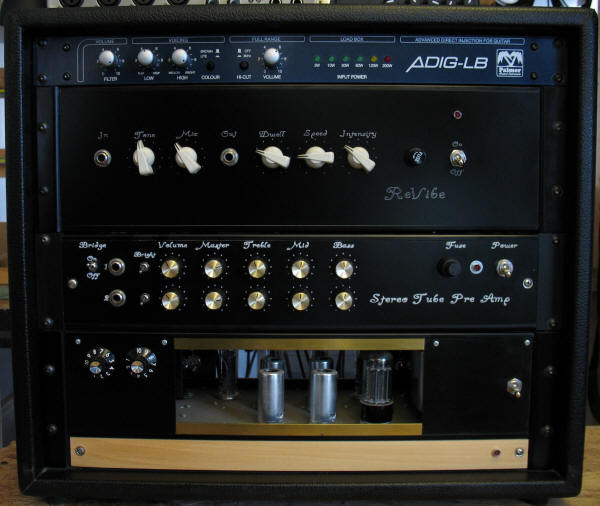

| Front view of my rack setup Top to Bottom Items in rack Palmer Speaker emulator - Load Box ReVibe Stereo Pre Amp Stereo Power Amp |
|
| - | |
 |
Here's the schematic for the Stereo 18 watt power amp. I don't have a layout diagram since this thing was wired point to point. You would have to look at the pictures if you wanted to copy my layout. The Parts in blue are just higher wattage parts. AC30 power transformers will work for this project. The voltages must be lower than a typical Fender type power transformer. The power tranny I used had 280-0-280 for the high voltage winding. |
