| Jazz-O-Caster #2 Build |
 |
 |

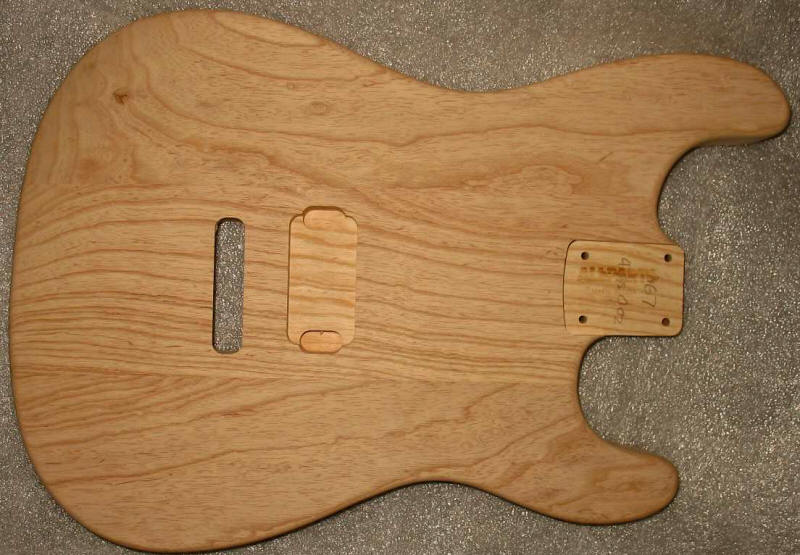

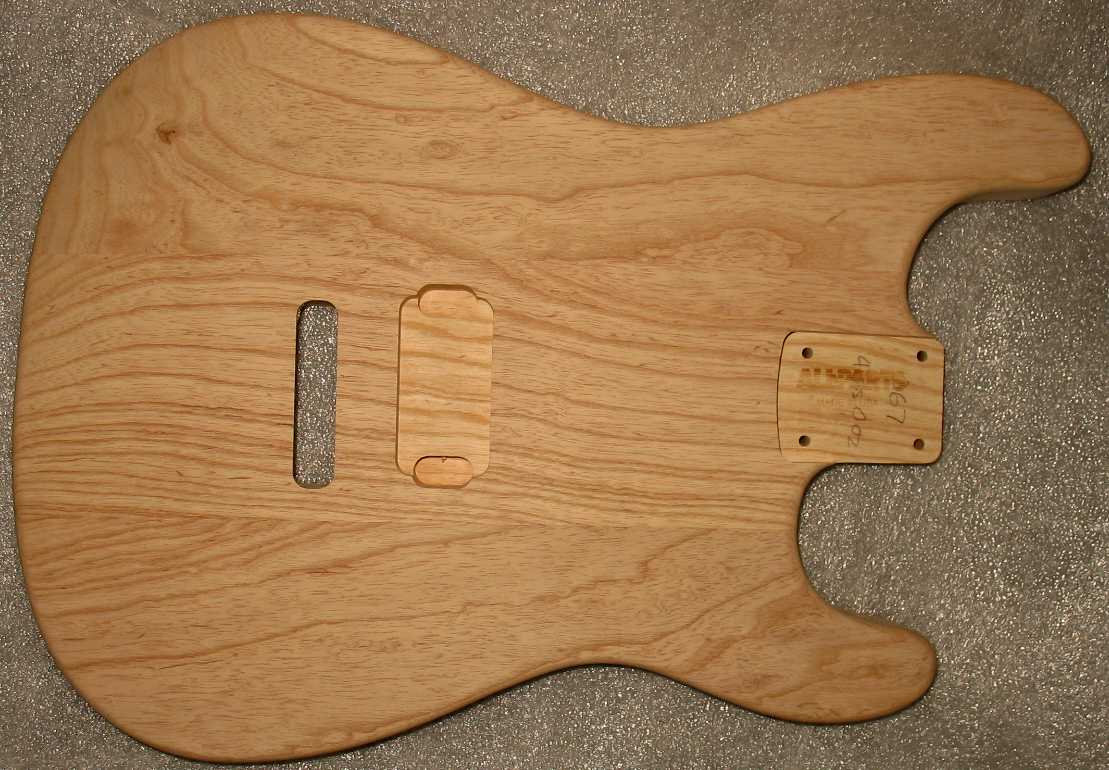

| I ordered the body and Neck from All Parts. The rear pickup hole is too small for a Jazzmaster pickup. It will get machined on my CNC machine. |
| Click on the images to see a larger image |
 |

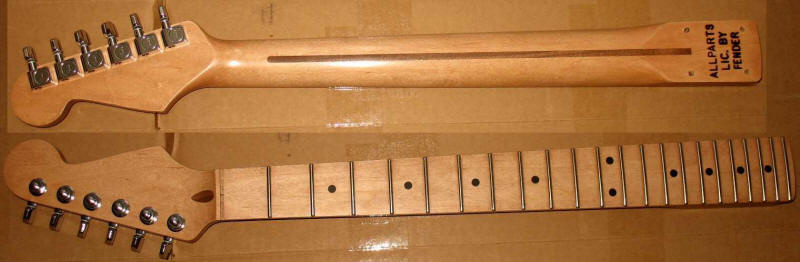

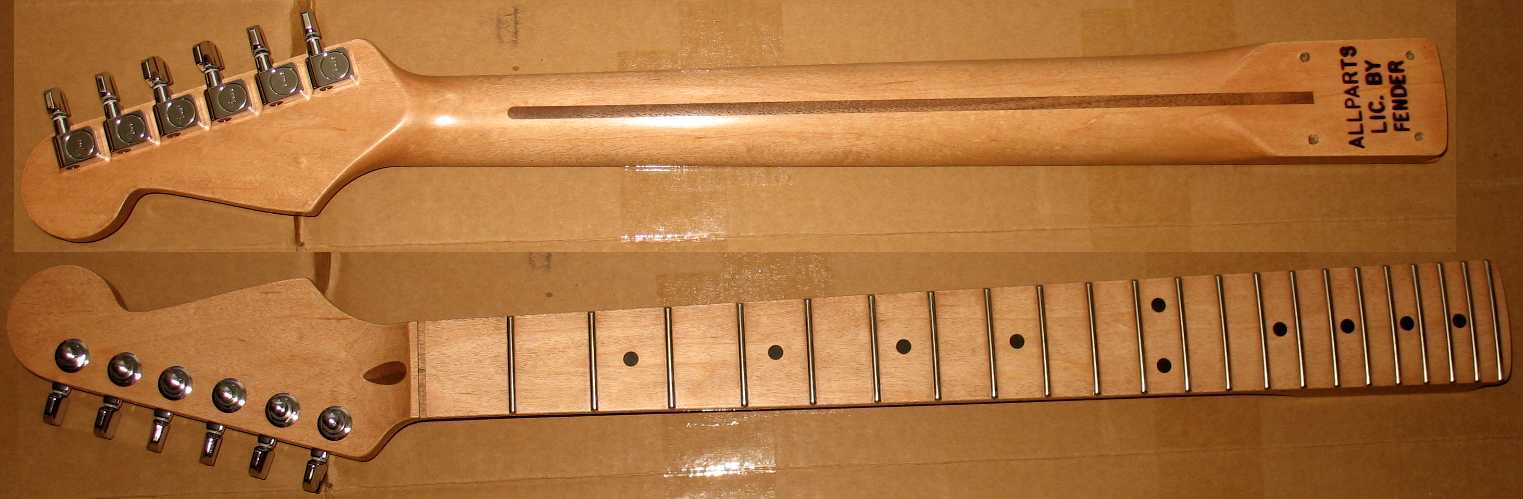

| Here's the neck with the Fender custom tuners installed |
| Click on the images to see a larger image |
 |

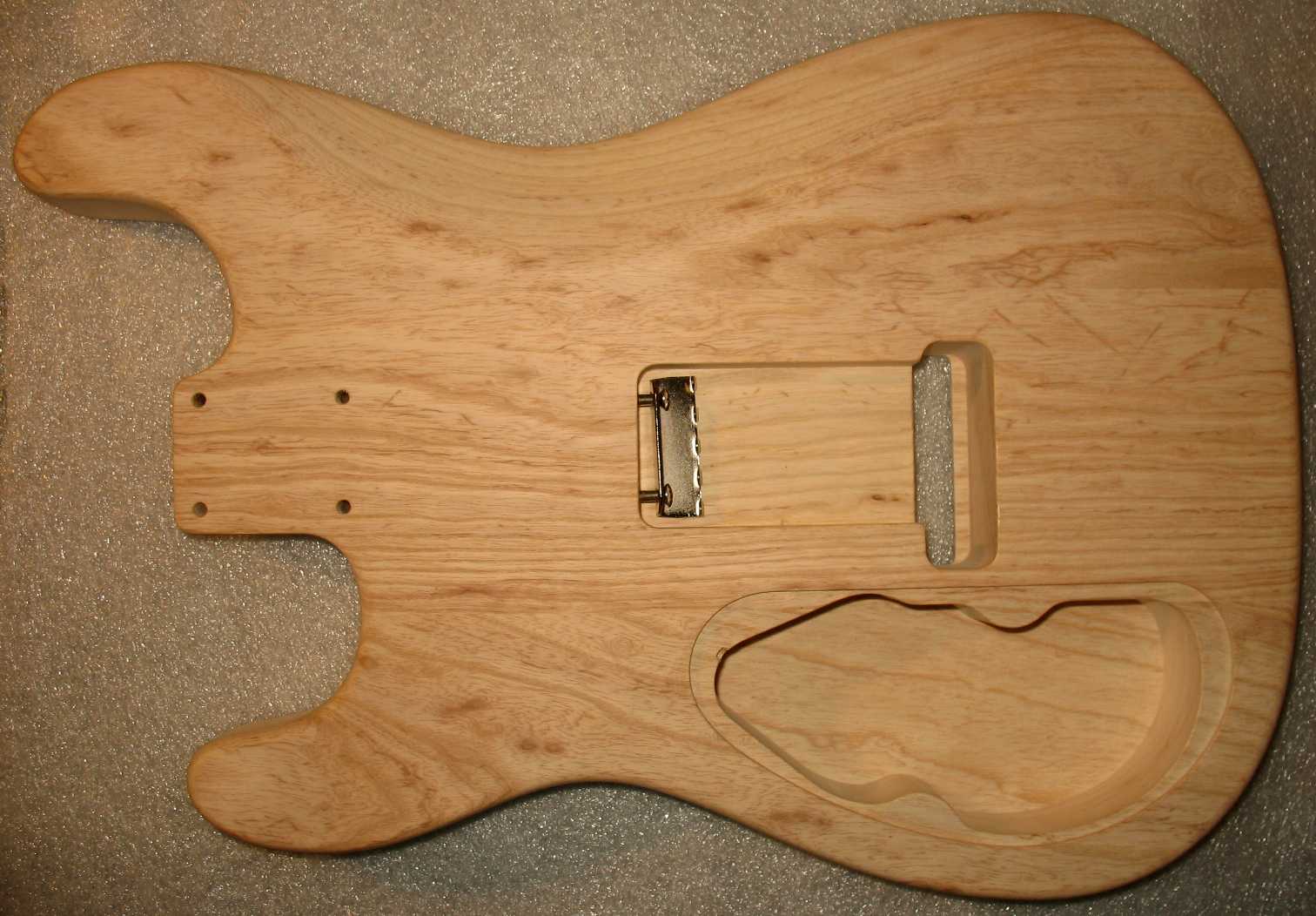

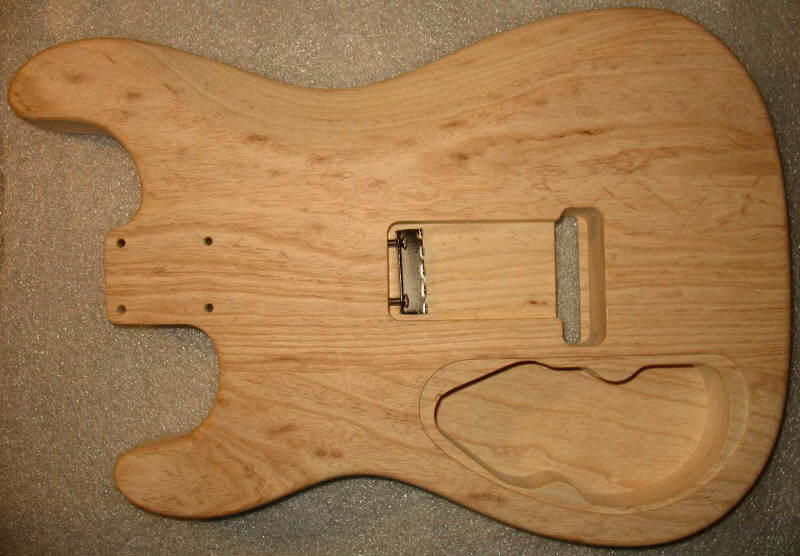

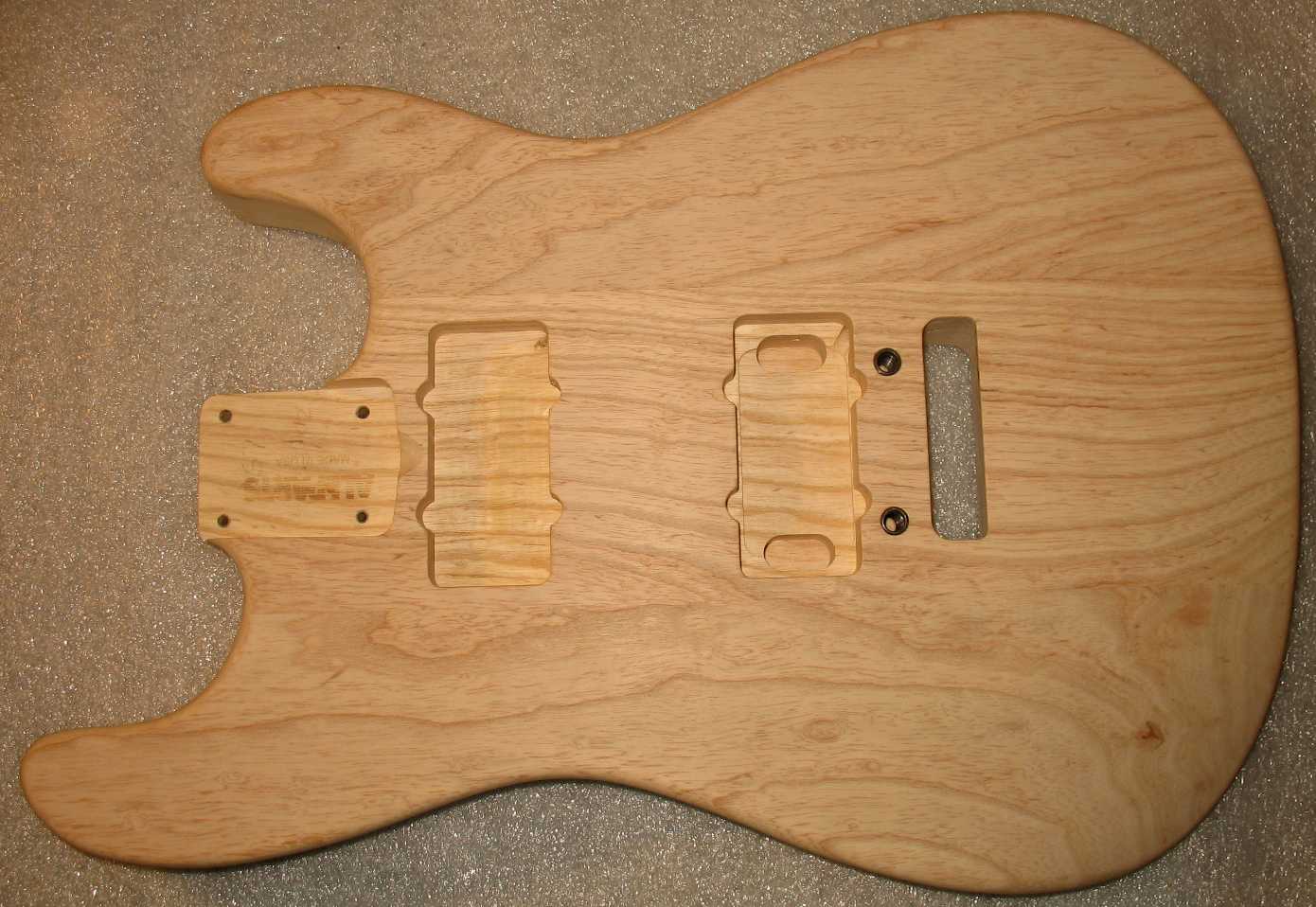

| Here's the body after I routed out the pickup holes for
Jazzmaster pickups I also had to drill for the floating trem studs I had to route out truss rod access that is not shown here |
| Click on the images to see a larger image |
 |

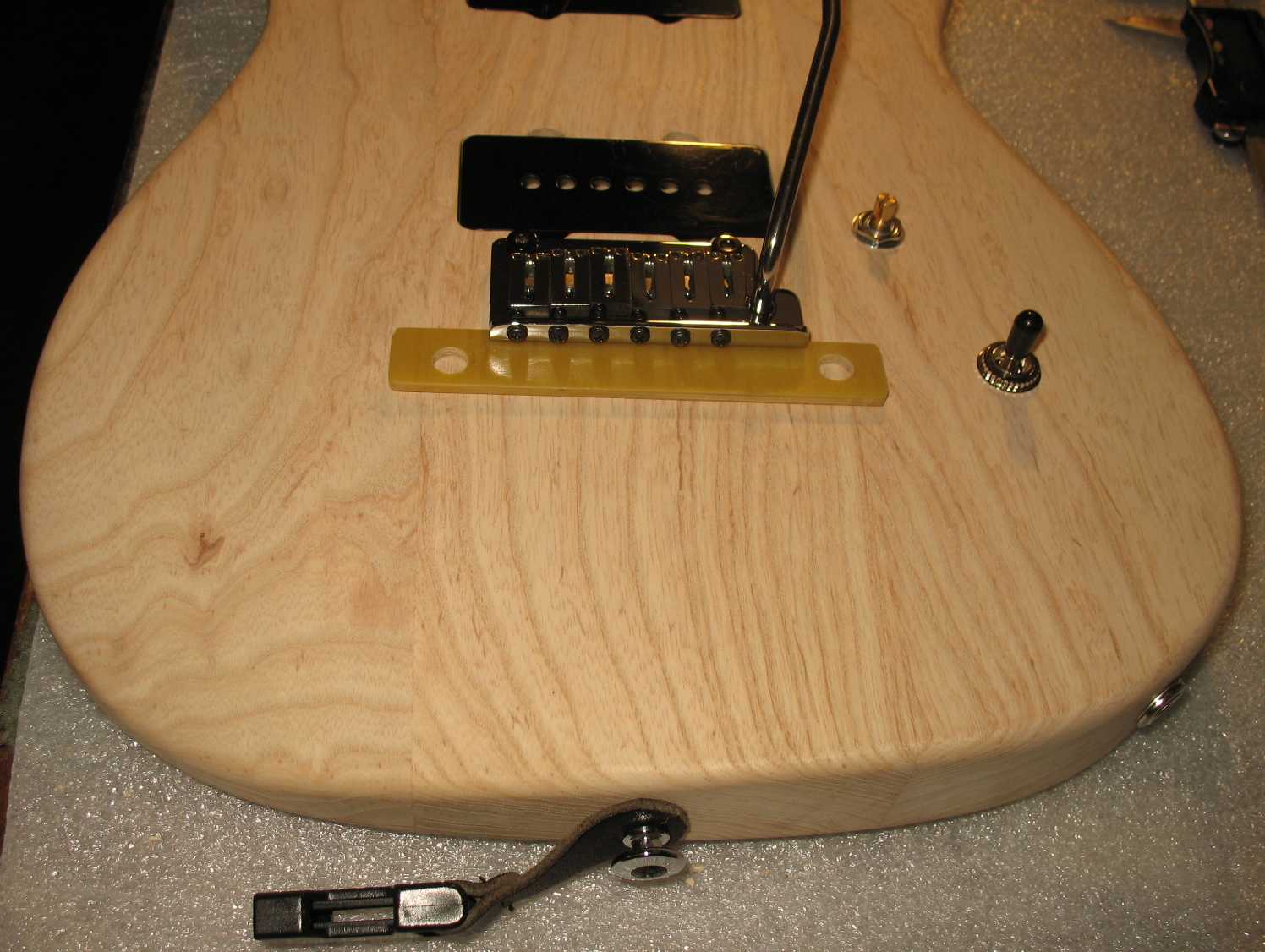

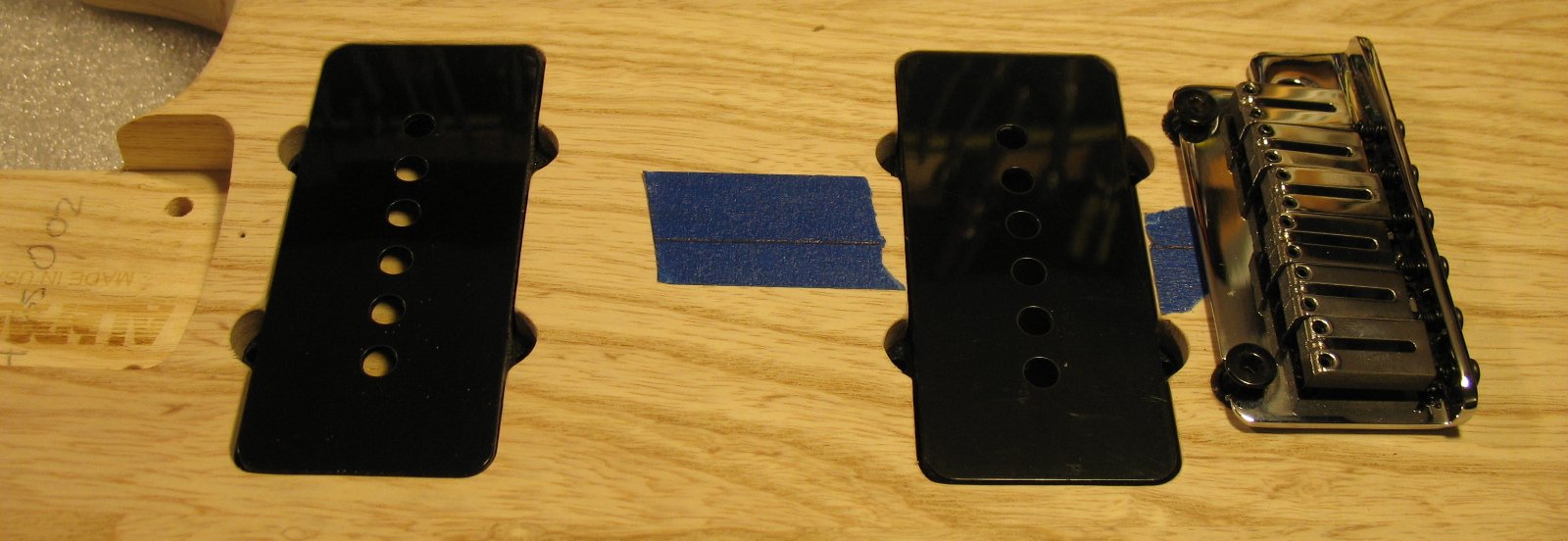

| I dropped the pickup covers in to make sure they fit The Fender custom bridge is checked for fit |
| Click on the images to see a larger image |
 |
| Volume and pickup selector holes were drilled A tone control pot was added later |
| Click on the images to see a larger image |
 |

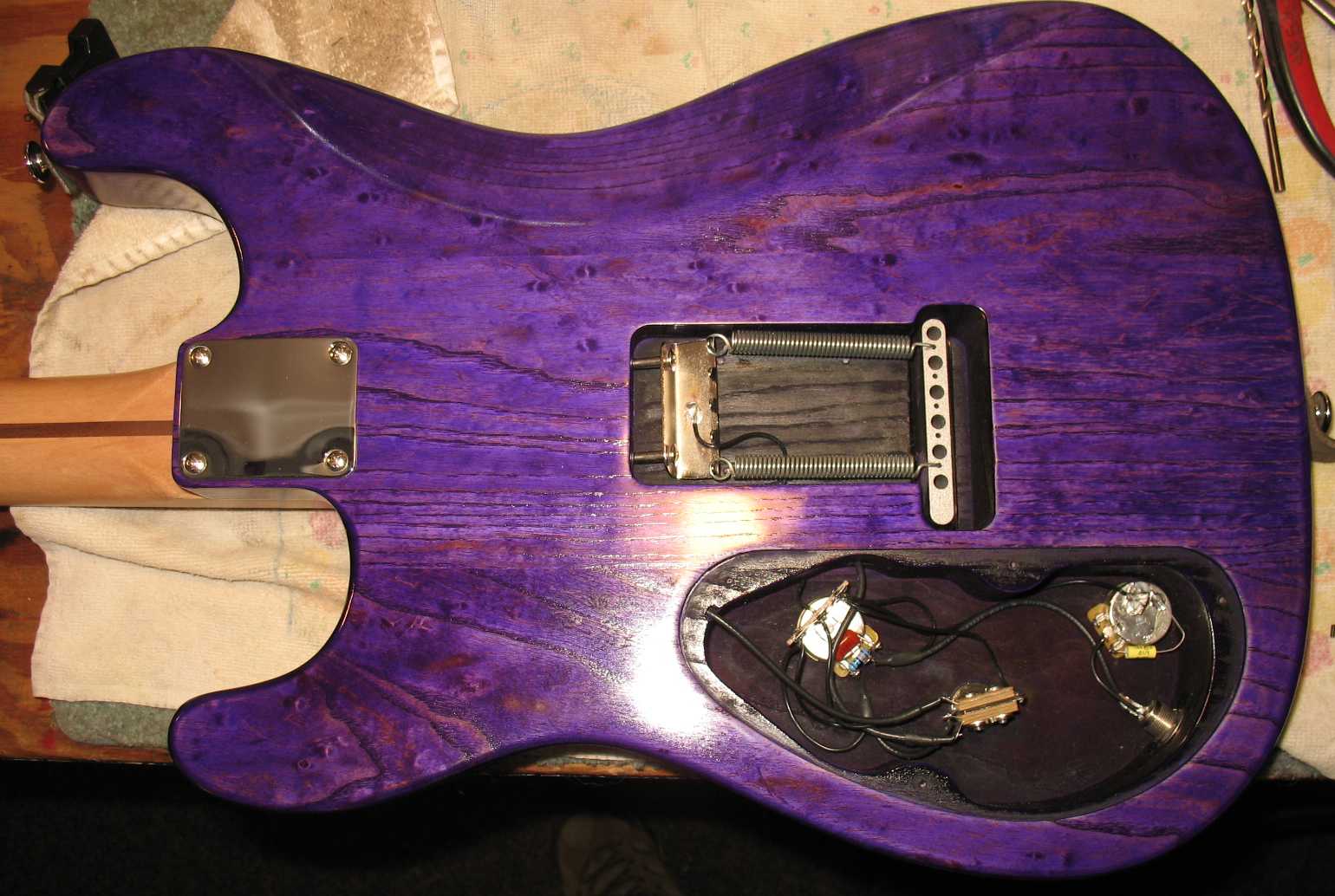

| I used a purple leather dye to color the body I wiped on a clear hand finish over the dye The control panel is wired The bridge and springs are installed The neck is installed |
| Click on the images to see a larger image |
 |

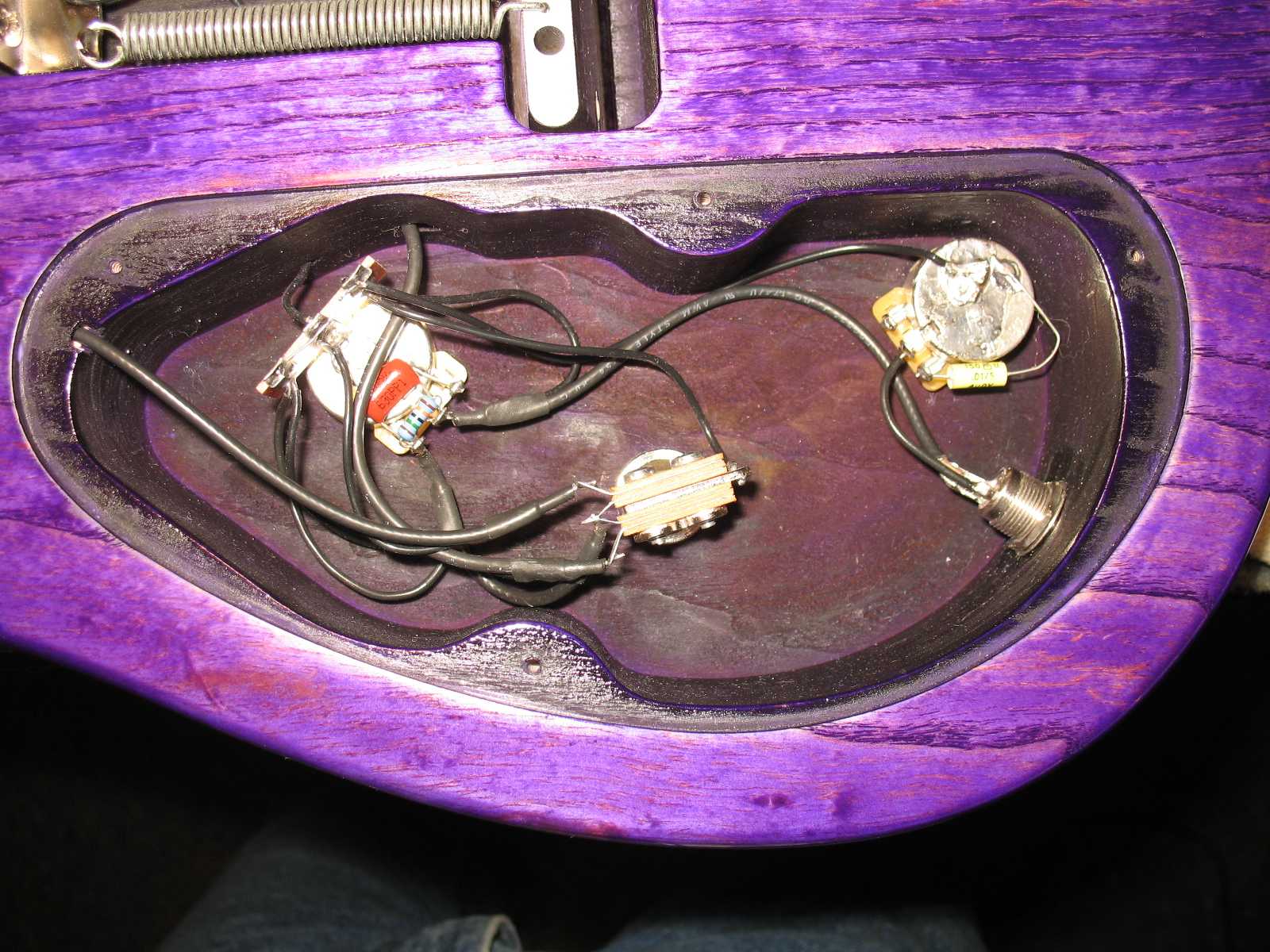

| A close up of the control section Note that I installed a Fender TBX tone control, not shown here |
| Click on the images to see a larger image |
 |

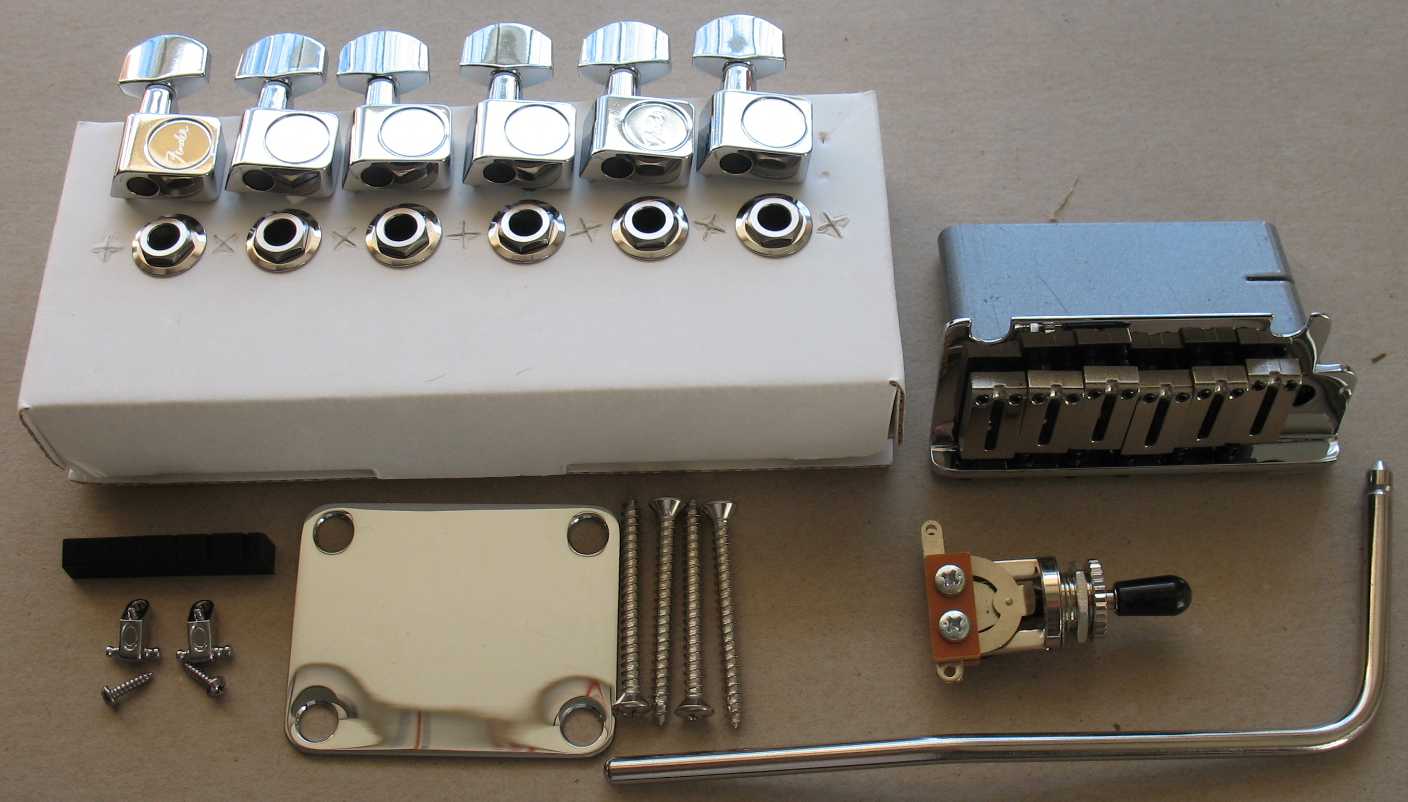

| Here's the Fender hardware I used I added a Gibson pickup selector switch Note that I switched the metal saddles to graphite saddles later |
| Click on the images to see a larger image |
 |

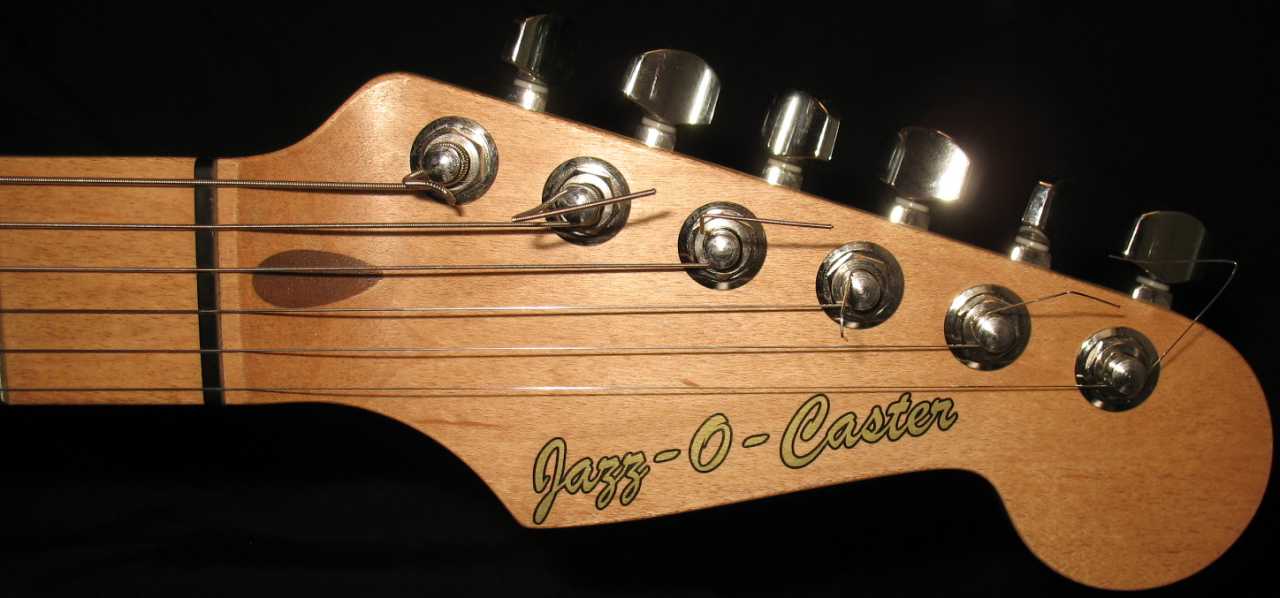

| I had a custom decal made at a later date. |
| Click on the images to see a larger image |
 |

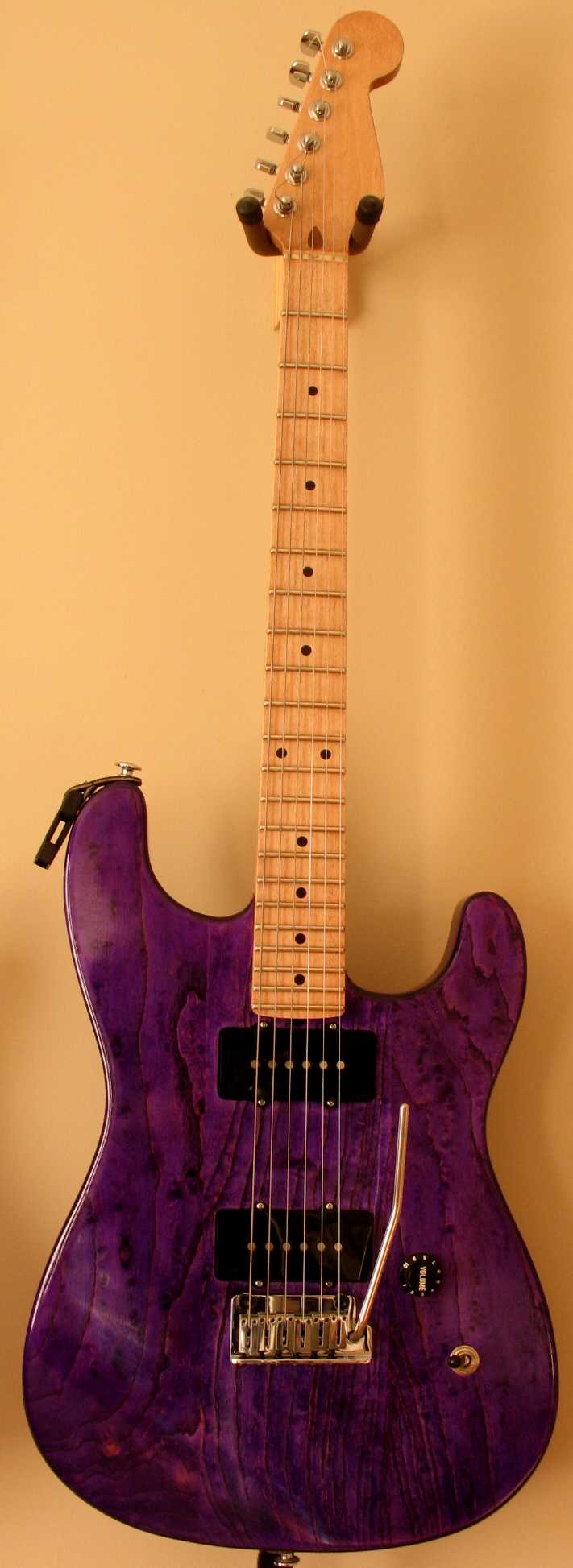

| Just a shot showing the color The tone control and decal were added later |
| Click on the images to see a larger image |
 |

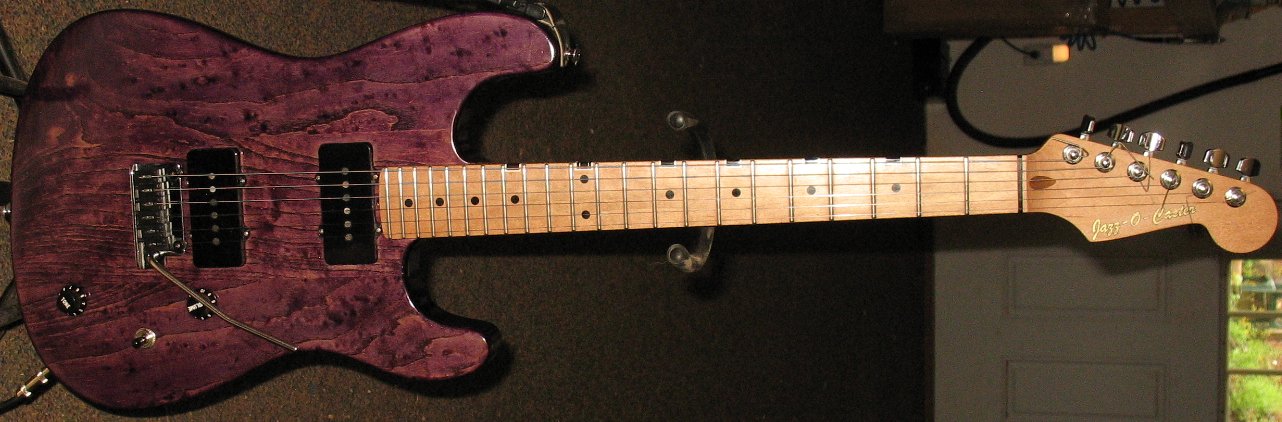

| A shot from 2024 |
