My Guitars and AmpsClick on the images below to see larger images |
|
 |
 |
| My Pile of Tube Amps My AB763 amp build page is here |

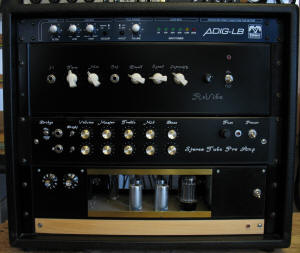

Part of My Rack setup Top to bottom Palmer ADIG-LB Power soak/Direct box ReVibe Two channel tube pre amp Two channel tube power amp |
| - | |
| Click on the images below to see larger images | |
 |
 |
| Top: Plexi 6V6 Middle: Stout TMB Bottom: Original prototype Hoffman H50 All sitting on a Marshall 4 x12 with Vintage 30 Celestion speakers |

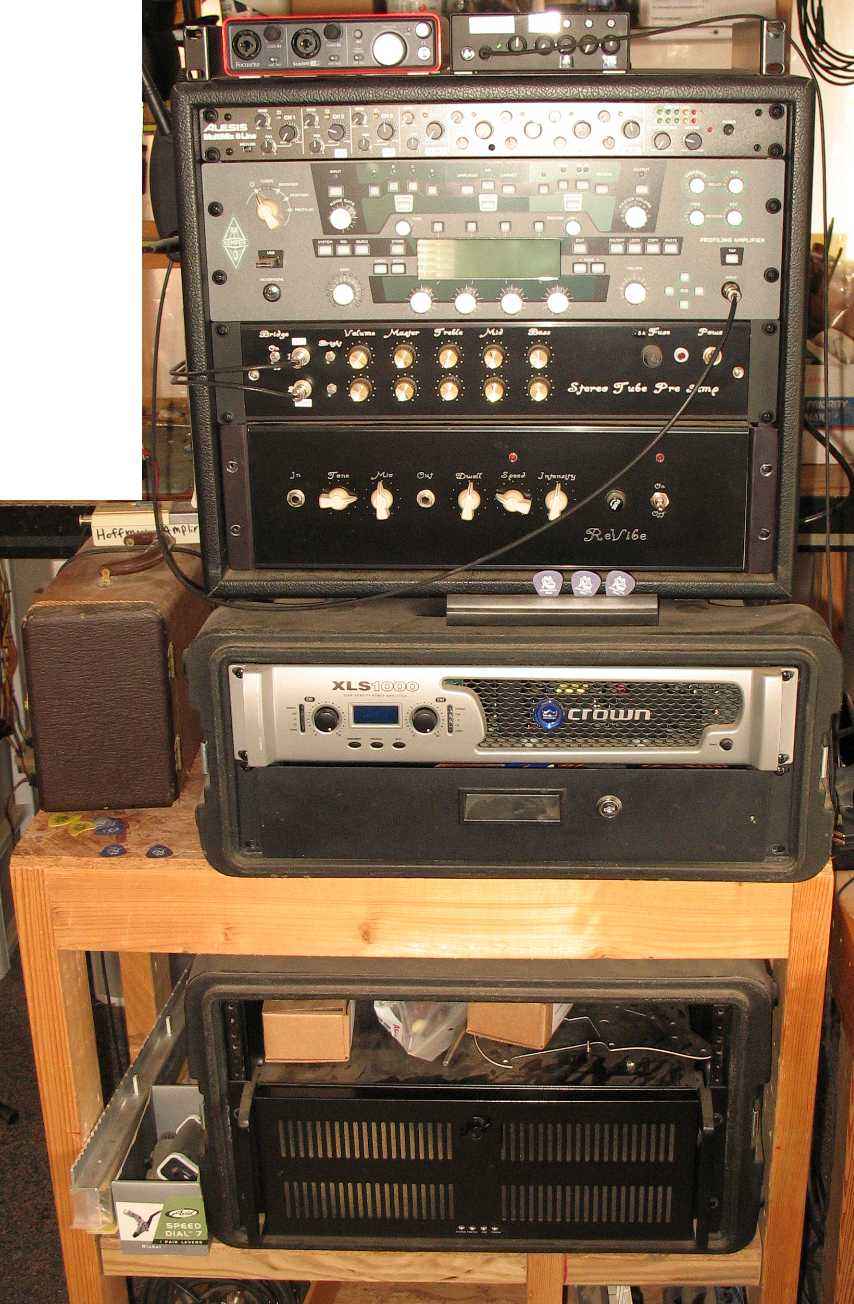

My recording area. Top to bottom 8 channel mixer Kemper profiling amp Two channel tube pre amp ReVibe Crown Power amp |
| My Guitars | |
| Click on the images below to see larger images | |
 |
 |
| This is Jazz-O-Caster #2 . I assembled it from scratch using a All parts swamp ash body and All parts Maple neck The body was machines on my CNC for Mojo 59 clone Jazzmaster Pickups It has a Fender deluxe bridge and Fender staggered tuners I have some build pphots of the guitar here Jazz-O Caster build page |
|
| - | |
| Click on the small images to see the full size image. | |
 |
- |

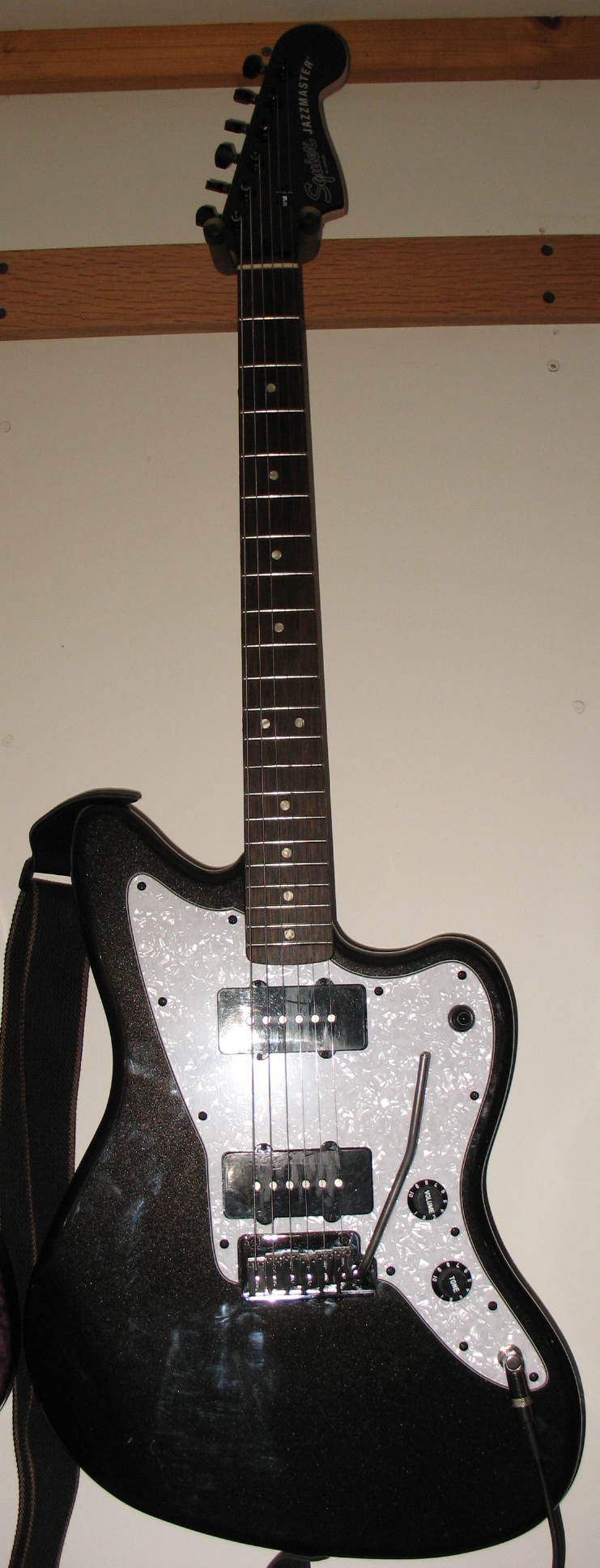

| My Squier Jazzmaster. I upgraded the pickups to Mojo Jazzmaster Pickups. I changed out the bridge to a Fender Custom bridge. I changed the white pick guard to White Pearloid. |
- |
| - | |
| Click on the images below to see larger images | |
 |
 |

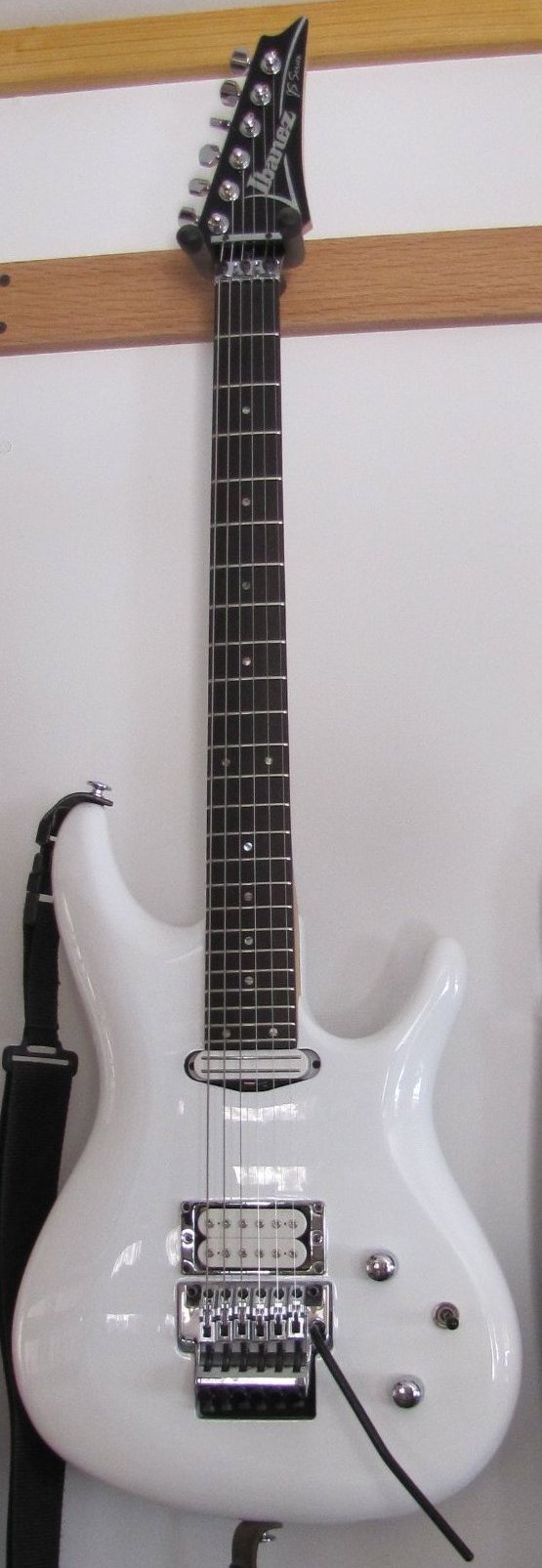

| Ibanez JS2400 |

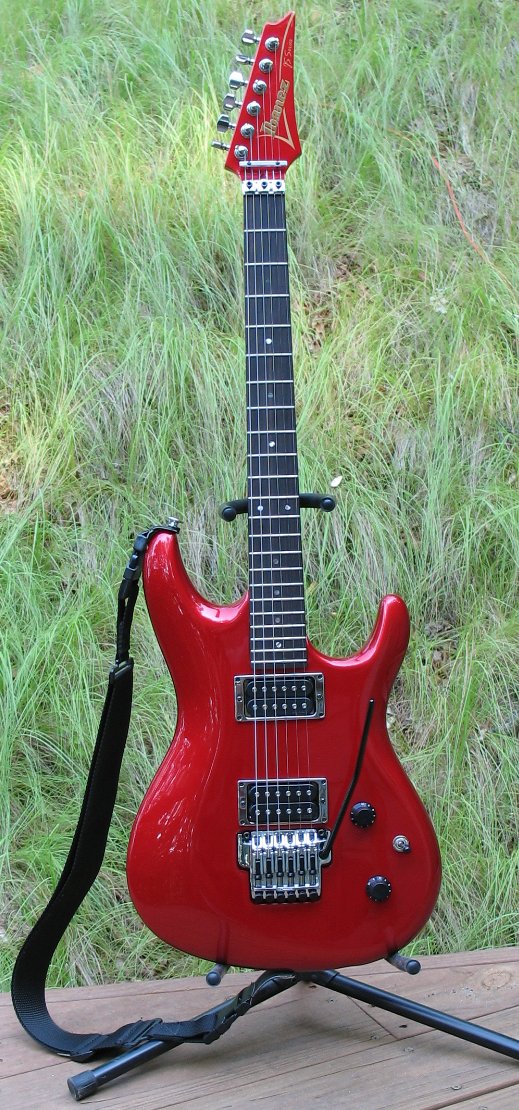

Ibanez JS1200CA |
| - | |
| Click on the images below to see larger images | |
 |
 |

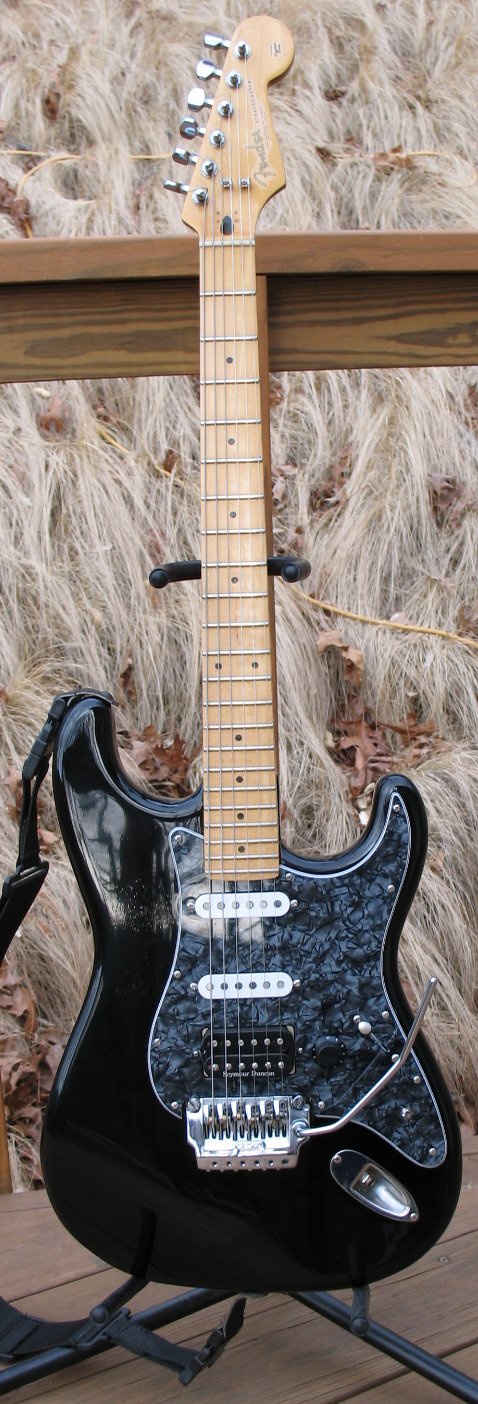

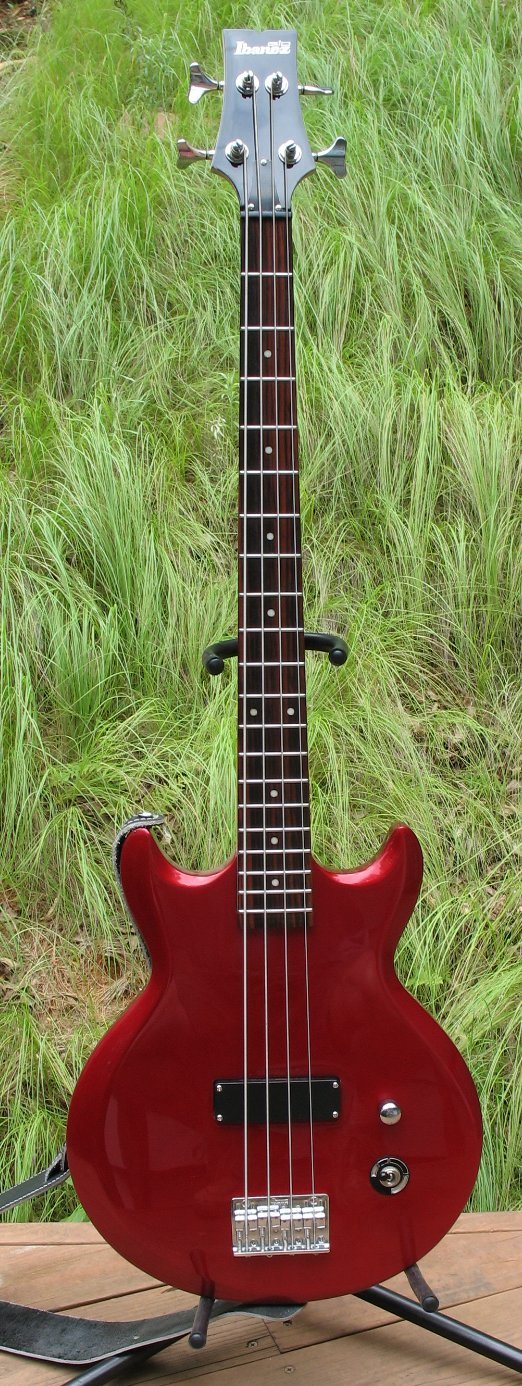

| Bastard Strat 2 | Ibanez Bass The red Ibanez Bass is what I use to record the tunes. It's a cheapo Bass but it records and plays and sounds just fine. |
| - | |
| Click on the images below to see larger images | |
 |
 |
| Bastard Strat 1 I sold this guitar |

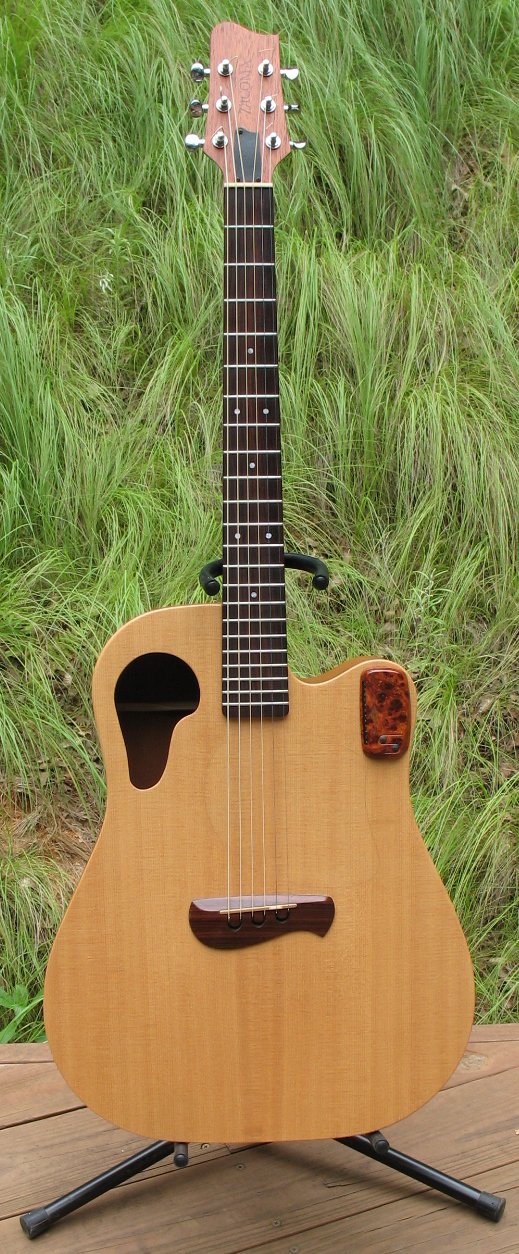

Tacoma Road King |
You can hear these guitars in action on this page Sound clips page |
|
