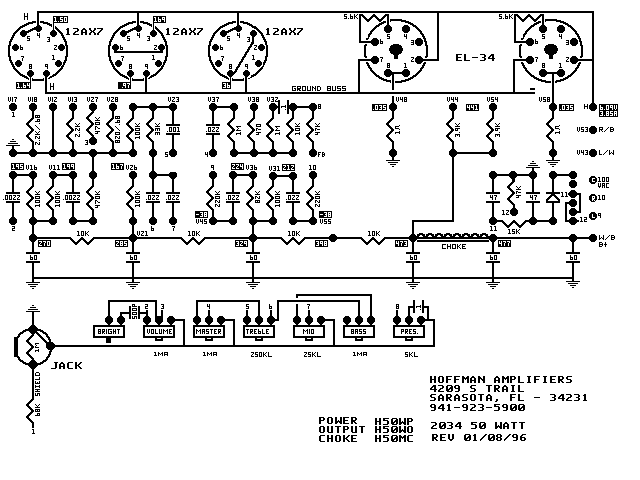

The Original 50 watt Hoffman head layout diagrams.These heads were called model 2034 |
 |
| Notice that the heaters were run on DC on early models. That was dropped later on and the heaters were run conventionally on 6.3 volts ac. |
| - |
 |

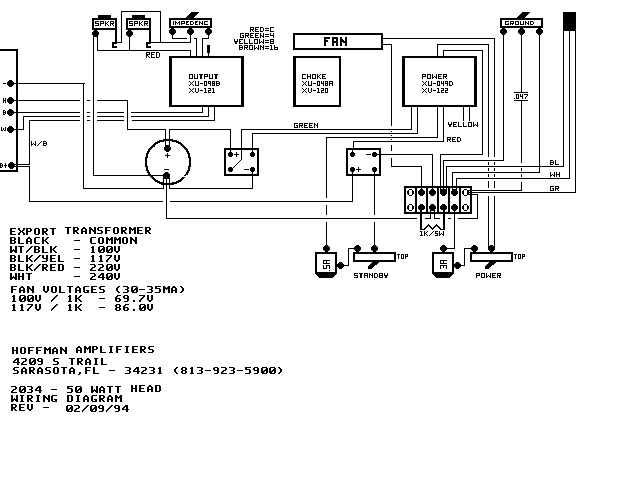

| Wiring Diagram |
| - |
