The Original 30 watt Hoffman head layout diagrams. |
 |

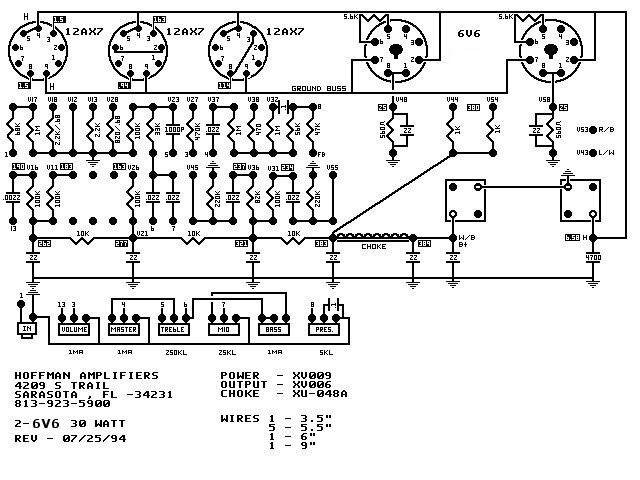

| 2 x 6V6 model Notice that the heaters were run on DC on early models. That was dropped later on and the heaters were run conventionally on 6.3 volts ac. |
| - |
 |

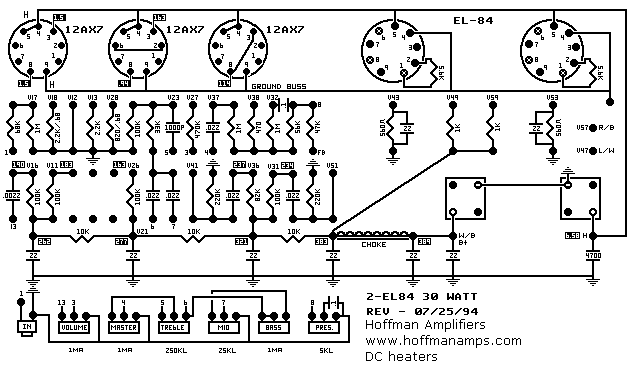

| 2 x EL84 version |
| - |
 |

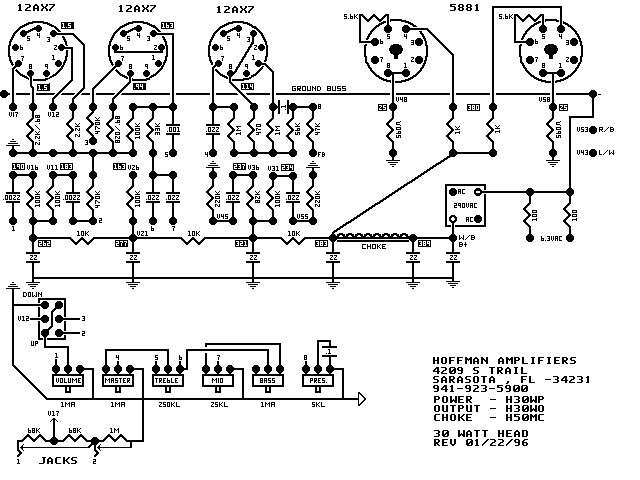

| 2 x 5881 - AC heaters and hot switch mod Same as 2 x 6V6 with AC heaters |
| - |
