Hoffman 5F1 Champ Board Build |
|
|
Note that Hoffman boards are not assembled by looking at my builds. I do test builds first and change the designs based on those builds. You assemble Hoffman boards using the documents listed below. The Layout Diagram, Schematic and BOM for this board are on this page |
|
| - | |
| Click on the images to see a larger image | |
|
|

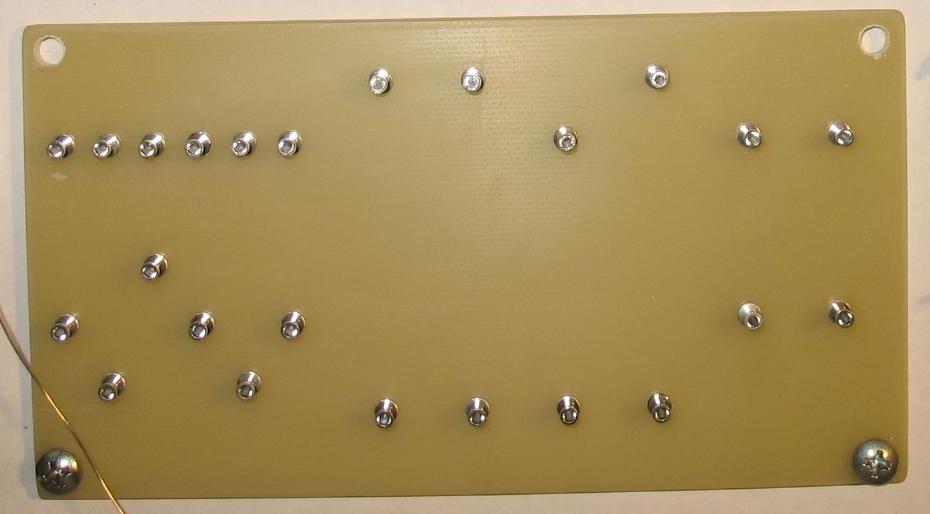

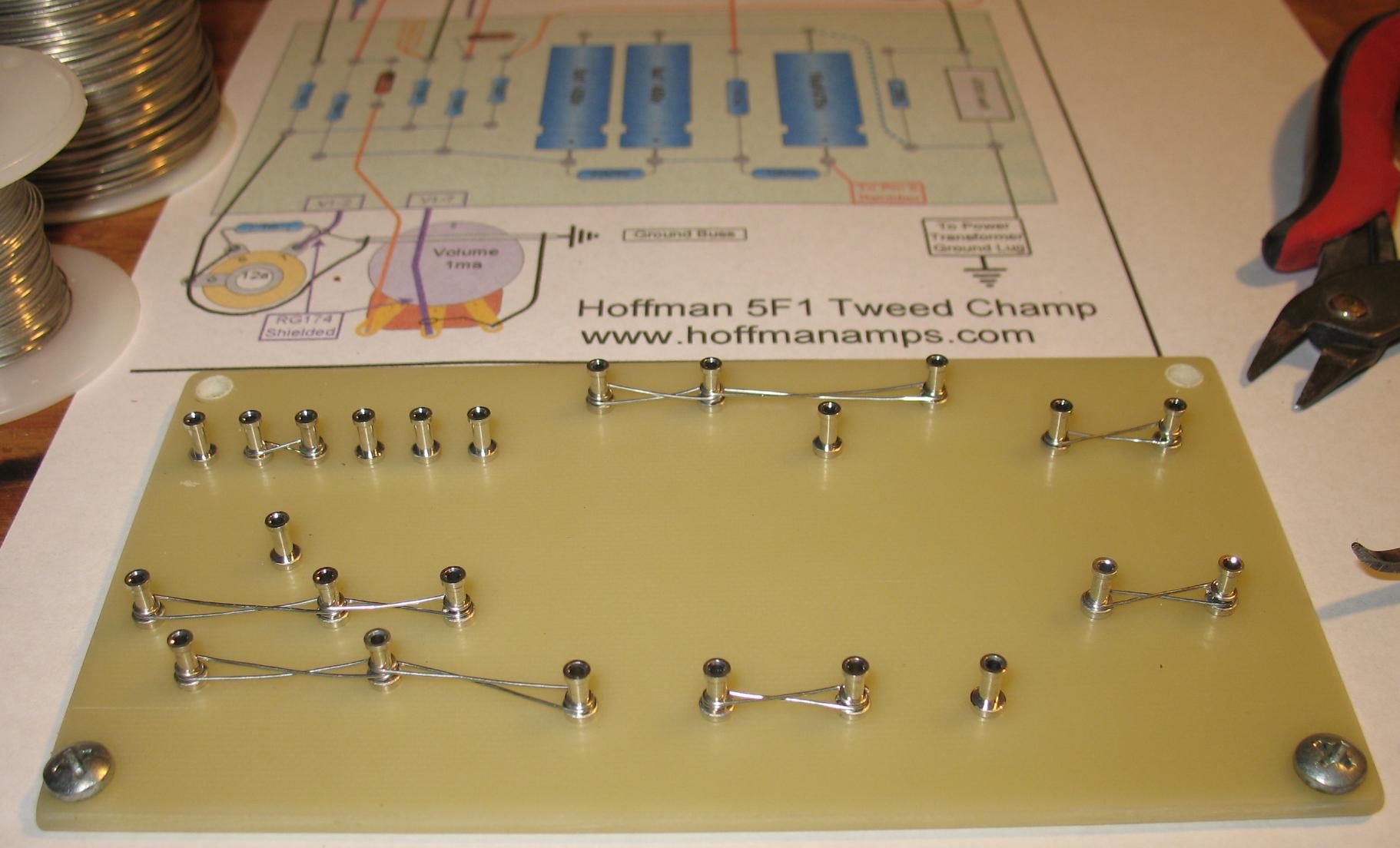

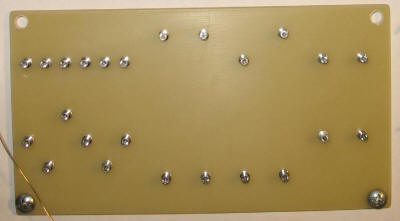

| Left: I have installed the turret lugs and screwed the board down to my work bench so I can lace up the jumpers on the board Right: I have laced the lugs. (Creating jumpers between the lugs) |
|
| - | |
| Click on the images to see a larger image | |
|
|

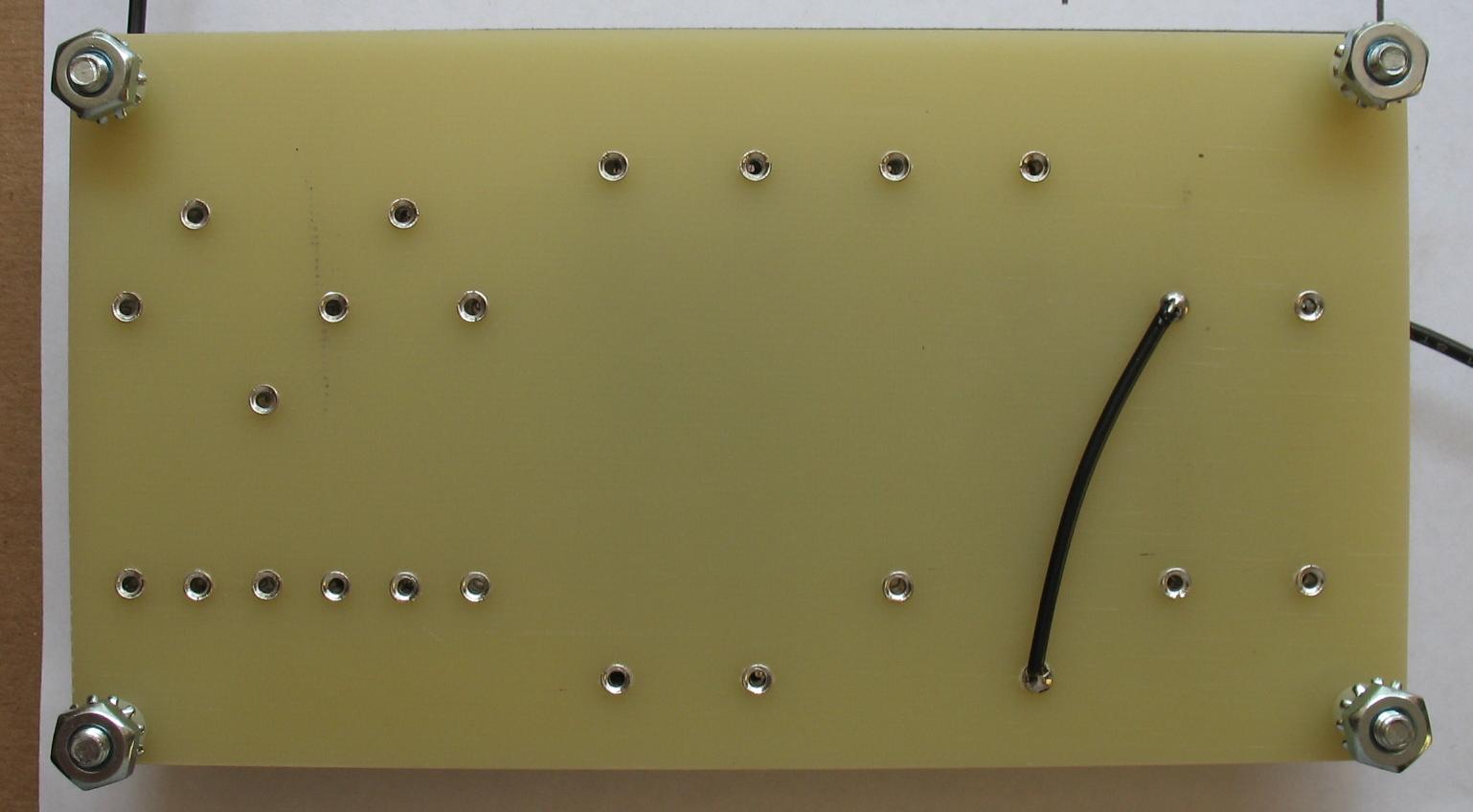

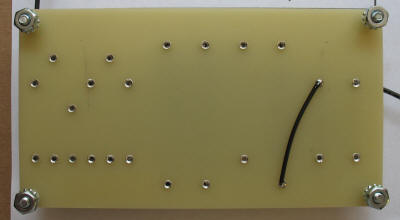

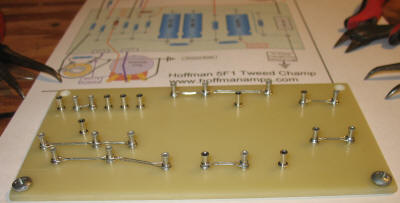

| Left: I soldered the lacings down at the base of the lugs Right: There is one jumper wire on the back of the board |
|
| - | |
| Click on the images to see a larger image | |
|
|

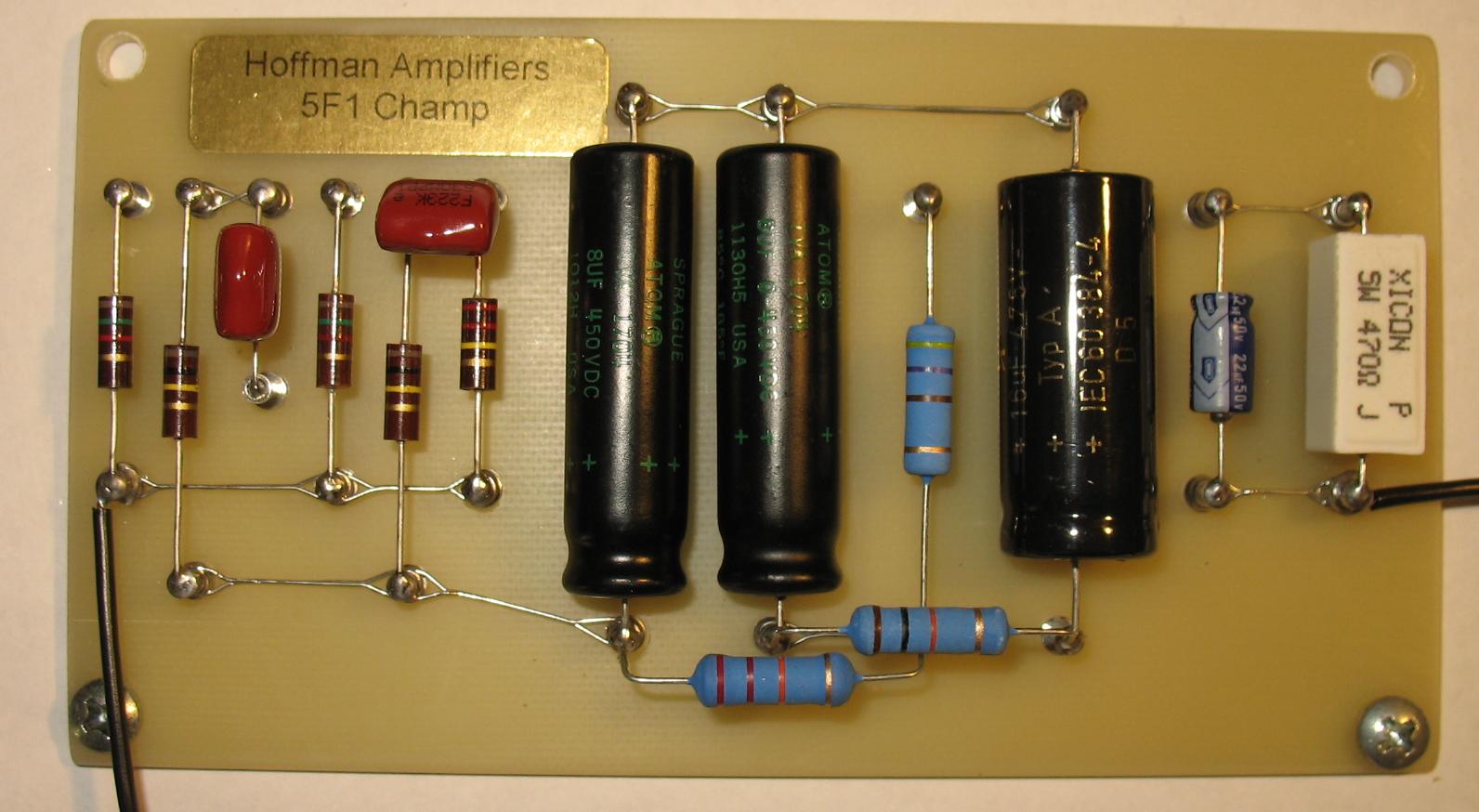

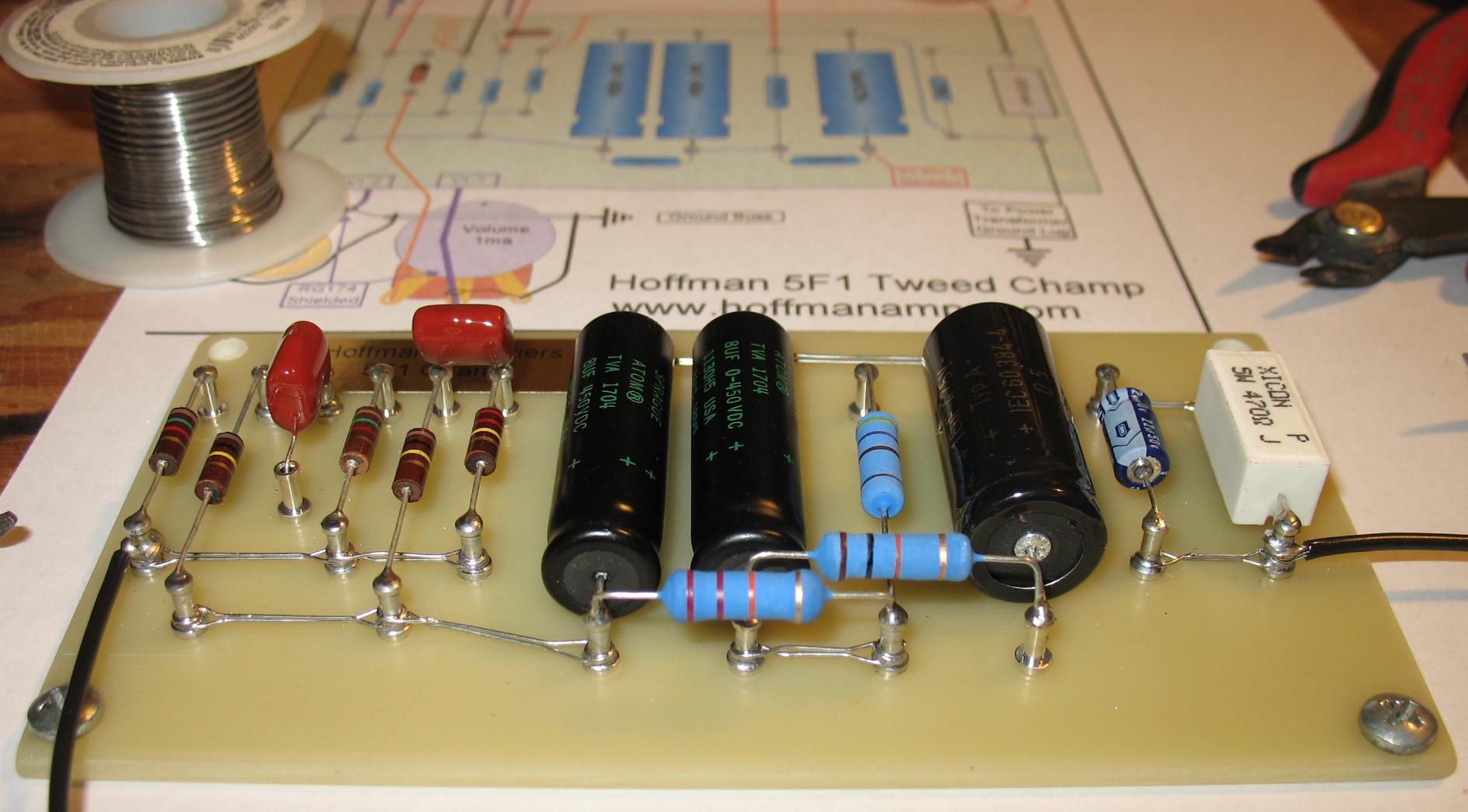

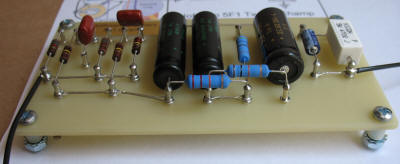

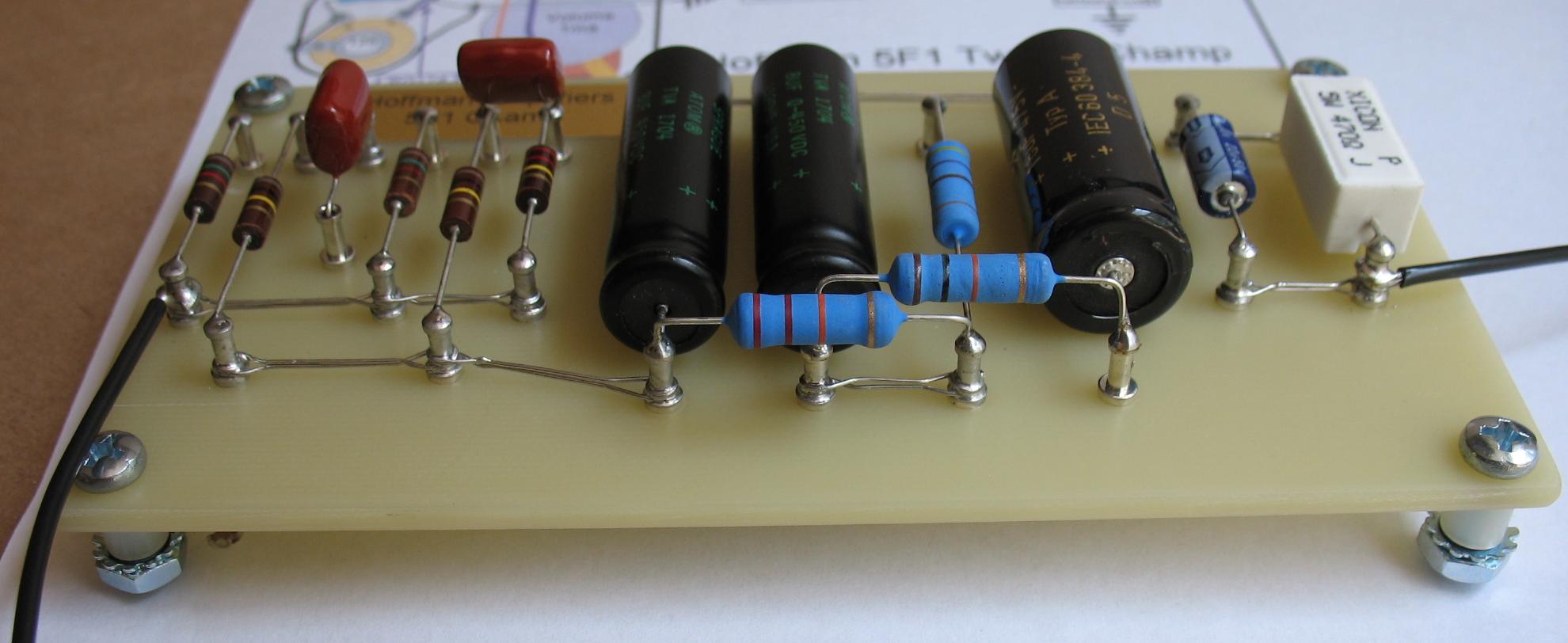

| The parts have been installed and soldered to the top of the lugs The two ground wires have been installed |
|
| - | |
| Click on the images to see a larger image | |
|
|
| The mounting hardware has been installed and the board is ready to be mounted in a chassis |
|
| - | |
